Wired LCD Keypad | DS-PK1-LRT-HWB

Name: Wired LCD Keypad | DS-PK1-LRT-HWB
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 302401919
Price: 318 MYR
Availability: InStock

DS-PK1-LRT-HWB

- LCD screen display
- Supports one-touch arm（Arming without password）
- Supports Fire/Panic/Medical alarm key
- Supports company name, phone number, time display

RM318.00 ~~RM636.00~~

(Excluding Taxes)

Quantity

13 In Stock, Puchong

1 In Stock, Johor Bahru

1 In Stock, Penang (Perai)

1 In Stock, Penang (Gelugor)

5 In Stock, KK

Add to Favorite Items

Description

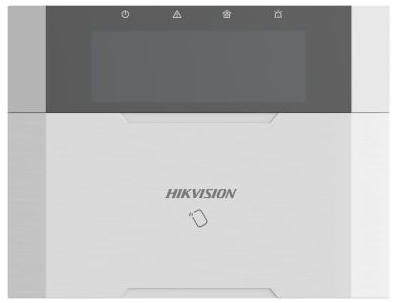

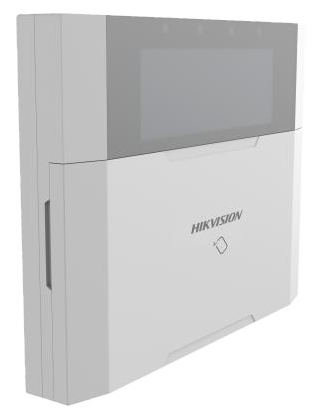

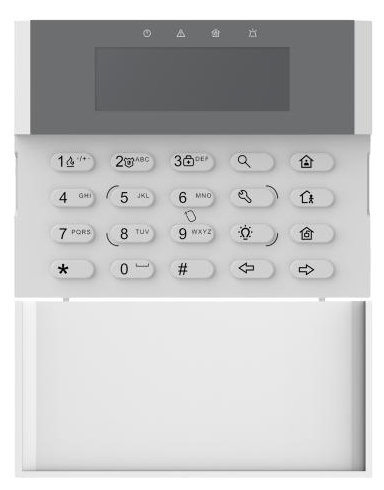

Wired LCD Keypad
DS-PK1-LRT-HWB

The DS-PK1-LRT-HWE/DS-PK1-LRT-HWB wired keypad is an AX series keypad designed for AX hybrid pro control panel (DS-PHA48-EP, DS-PHA64-LP). The DS-PK1-LRT-HWE/ DS-PK1-LRT-HWB supports built-in wireless transceiver and tag reader, which can work with keyfob and tag for arming/disarming.

LCD screen display
Supports one-touch arm（Arming without password）
Supports Fire/Panic/Medical alarm key
Supports company name, phone number, time display
Supports 2 on-board alarm inputs and 1 on-board alarm output
Supports maximum 64 keyfobs

Specification

Tag readar built-in	1 built-in tag reader
Serial port	1 TTL serial port
Tamper-Proof	1 back-cover tamper-switch (Will be damaged when tamper triggered)
Buzzer	1 on-board buzzer
Function key	8 Function keys: Query, away arm, stay arm, disarm, alarm output, project, left, right
RS-485	1 RS-485
Alarm input	2 on-board alarm inputs
Alarm output	1 on-board alarm output
Power Supply	DC 12 V
RF frequency	868 MHz
Display screen	LCD screen
Indicator	4 indicators and 1 backlight: (1)Power: Green (2)Faults: Fault-Orange / Alert-Flashing orange / Find me mode-flashing green (3)Armed: Blue (4)Alarm: Red (5)Keypad button backlight: White
Dimension(W×H×D)	150 mm × 115 mm × 28 mm
Operation temperature	- 10 °C to 55 °C (14 °F to 131 °F)
Operation humidity	10% to 90%

Datasheet

Download Datasheet
