DS-2SE3C404MWG-E/14

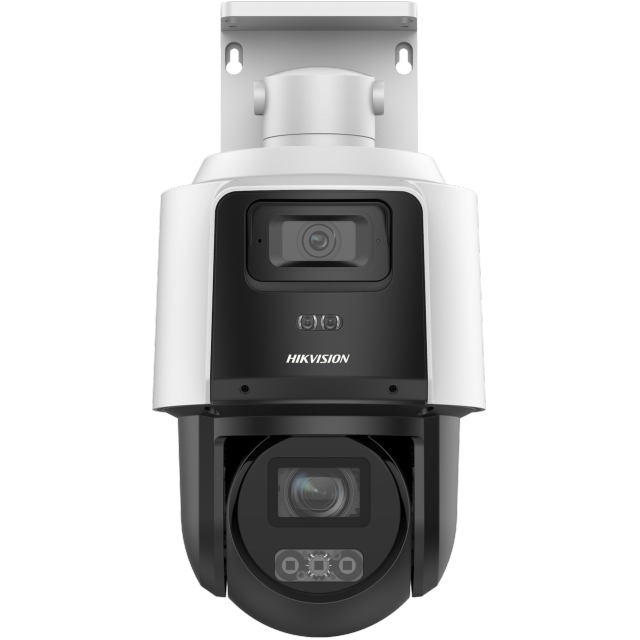

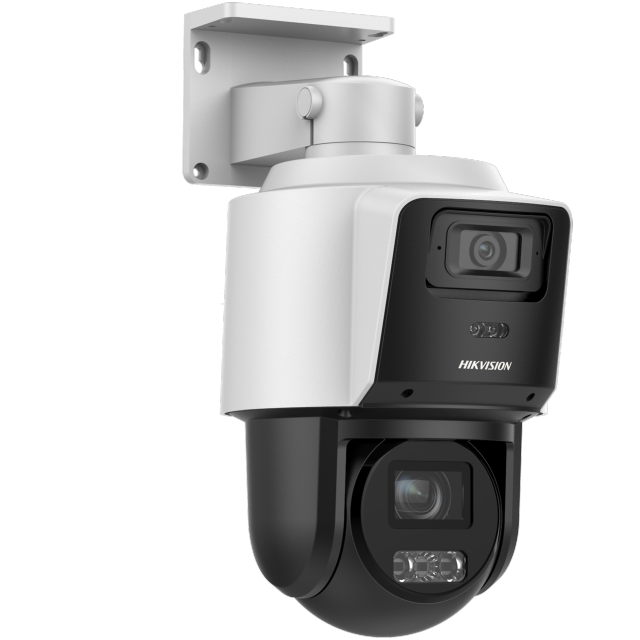

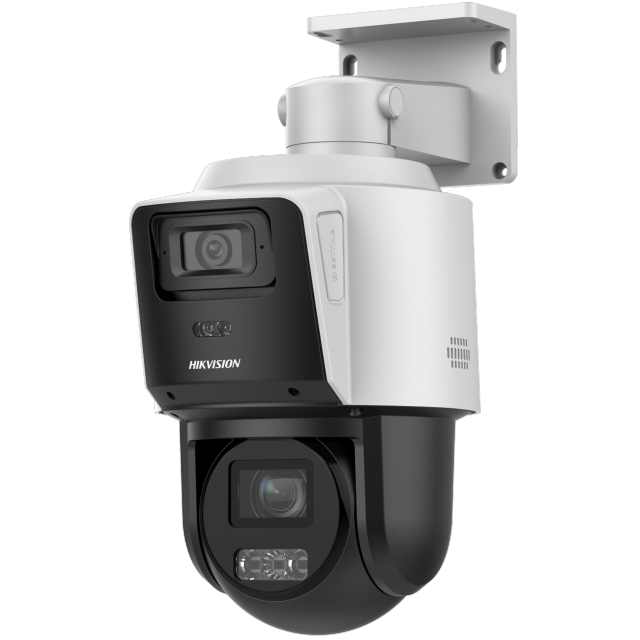

TandemVu 4MP+4MP 4X POE PTZ Network Camera
Hikvision 4× IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip.With the 4× optical zoom lens, the camera offers more details over expansiveareas.
This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Hikvision has been dedicated to develop products with security since established.
Hikvision always follows security by design principle and has adopted many methods of security technologies into our product development lifecycle, including terminal security, data security, application security, network security, and privacy protection.In the mean time, the security technologies used by Hikvision area llin compliance with local applicable lawsand safety regulations. These security measures could enhance product's cyber security protection capability and protect your devices as well as your data from malicious cyber attacks.
Specifications
Image Sensor
|
[Bulletchannel]: 1/2.8" Progressive Scan CMOS; [PTZ channel] :1/2.8" progressive scan CMOS
|
Min. Illumination
|
[Bullet channel]: Color: 0.01 Lux @ (F1.6, AGC ON)，B/W: 0.005 Lux @ (F1.6，AGC ON),
0 Lux with IR;
[PTZ channel]:Color: 0.01 Lux @ (F1.5, AGC ON), B/W: 0.005Lux @ (F1.5, AGC ON), 0 Lux with IR
|
Day & Night
|
ICR
|
Zoom
|
[PTZ channel] 4 × optical, 16 × digital
|
Max. Resolution
|
[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
|
Focal Length
|
[Bullet channel]:2.8 mm; [PTZ channel]:2.8 to 12 mm, 4 × optical
|
FOV
|
[Bullet channel] horizontal field of view: 114.9°, vertical field of view: 62.4°, diagonal field of view: 136.4°,
[PTZ channel] horizontal field of view: 98°to 34.2°, vertical field of view: 52°to 19.2°, diagonal field of view: 111°to 39°
|
Movement Range (Pan)
|
0°to 350°
|
Movement Range (Tilt)
|
[Bulletchannel] 7° to 17° (manuallyadjust), [PTZchannel] -5° to 90°
|
Main Stream
|
[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
|
Built-in Speaker
|
1 built-in speaker
|
On-board Storage
|
Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
|
Dimension
|
311.5 mm × 223.5 mm × 156 mm (12.26" × 8.80" × 6.14")
|
Weight
|
Approx. 1.37 kg (3.02 lb.)
|
Protection
|
IP66 Standard, Surge Protection and Voltage Transient Protection
|
