DS-2SE4C425MWG-E/14(F0)

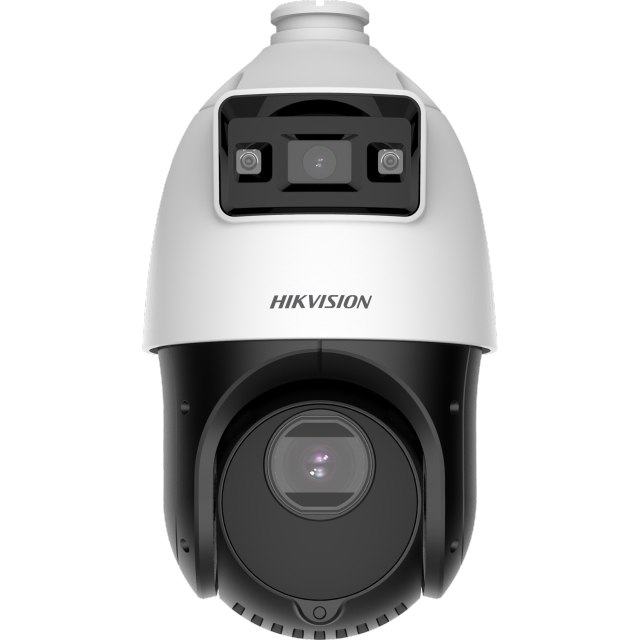

TandemVu 4+4MP 25X ColorVu & IR Acusense Network Speed Dome
Hikvision DS-2SE4C425MWG-E(14F0) 4 MP 25 × IR Network Speed Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 × optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition, such as rivers, roads, railways, airports, squares, parks, scenic spots, and venues, etc.
Specifications
Image Sensor
|
[Bullet channel]: 1/3" Progressive Scan CMOS; [PTZ channel]: 1/2.8" progressive scan CMOS
|
Min. Illumination
|
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
|
Day & Night
|
ICR
|
Zoom
|
[PTZ channel] 25 × optical, 16 × digital
|
Max. Resolution
|
[Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
|
Focal Length
|
[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
|
FOV
|
[Bullet channel]: Horizontal field of view: 96.1°, Vertical field of view: 52.1°,Diagonal
field of view: 113.3°;
[PTZ channel]:
Horizontal field of view: 55°to 2.4°(wide-tele), Vertical field of view: 33°to 1.4°(wide-tele), Diagonal field of view: 61.5°to 2.8°(wide-tele)
|
Movement Range (Pan)
|
360°
|
Movement Range (Tilt)
|
-15°to 90°(auto flip)
|
Main Stream
|
[Bullet channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
|
Audio Input
|
1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
|
On-board Storage
|
Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
|
Dimension
|
Ø 166 mm × 375 mm (Ø 6.5" × 14.7")
|
Weight
|
Approx. 2.4 kg (13.2 lb.)
|
Protection
|
IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
|
