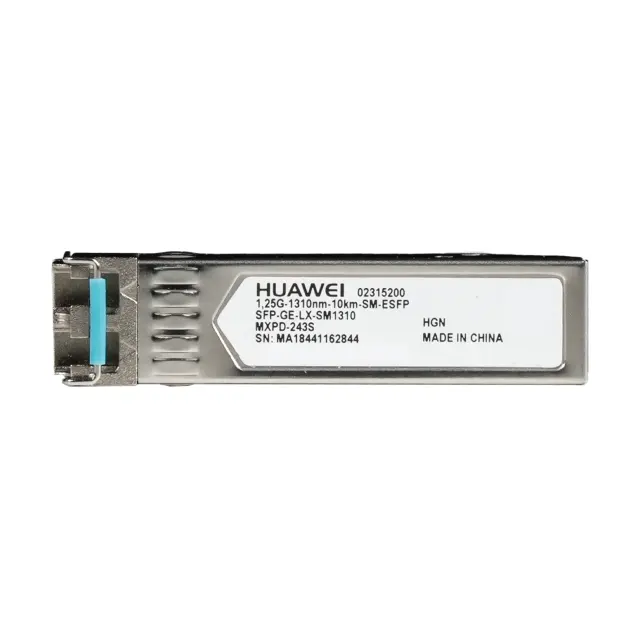

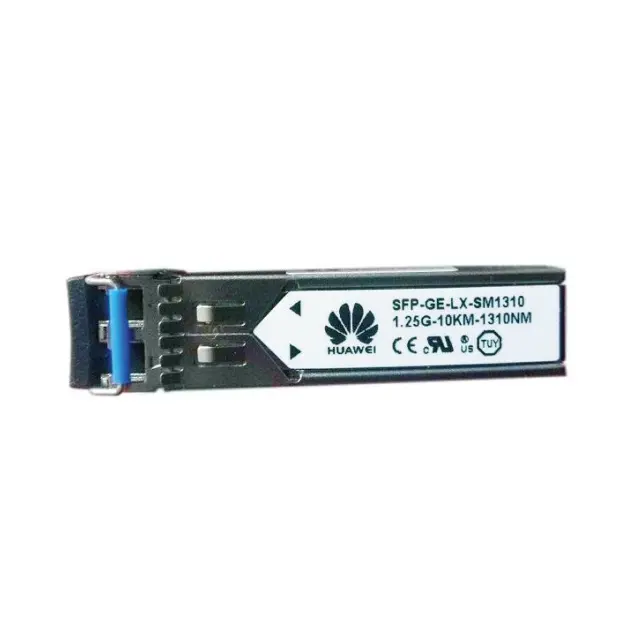

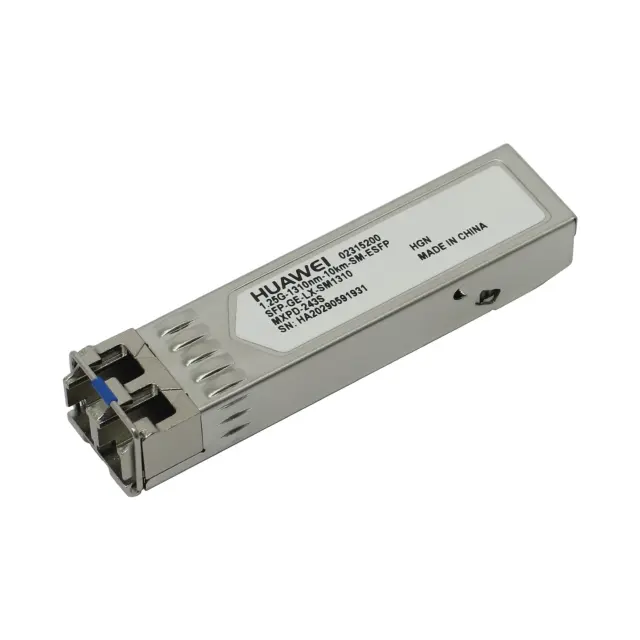

SFP Module 1G SM Duplex 10KM | SFP-GE-LX-SM1310

Name: SFP Module 1G SM Duplex 10KM | SFP-GE-LX-SM1310
Brand: Viskou | One-Stop Tech Solutions for a Smarter Future
SKU: 02315200
Price: 465 MYR
Availability: InStock

SFP-GE-LX-SM1310

- Extinction ratio (dB) is ≥ 9
- Transmit power (dBm) is -9 to -3
- Maximum receiver sensitivity (dBm) is -20

RM465.00 ~~RM930.00~~

(Excluding Taxes)

Quantity

-

+

2 In Stock, Puchong

4 In Stock, Johor Bahru

0 In Stock, Penang (Perai)

0 In Stock, Penang (Gelugor)

0 In Stock, KK

Add to Favorite Items

Description

SFP-GE-LX-SM1310
SFP Module 1G SM Duplex 10KM

Extinction ratio (dB) is ≥ 9
Transmit power (dBm) is -9 to -3
Maximum receiver sensitivity (dBm) is -20

Specifications

Part number	02315200
Version support	Supported in V100R001C00 and later versions
Transceiver form factor	eSFP
Transmission speed	GE
Center wavelength (nm)	1310
Standards compliance	1000BASE-LX10
Connector type	LC
Type of the end face of the fiber ceramic ferrule	PC or UPC
Applicable cable and maximum transmission distance	Multimode fiber (OM1) (with diameter of 62.5 μm): 550 m Multimode fiber (with diameter of 50 μm): 550 m Multimode fiber (OM2) (with diameter of 50 μm): 550 m Single-mode fiber (G.652) (with diameter of 9 μm): 10 km

Datasheet

Download Datasheet
