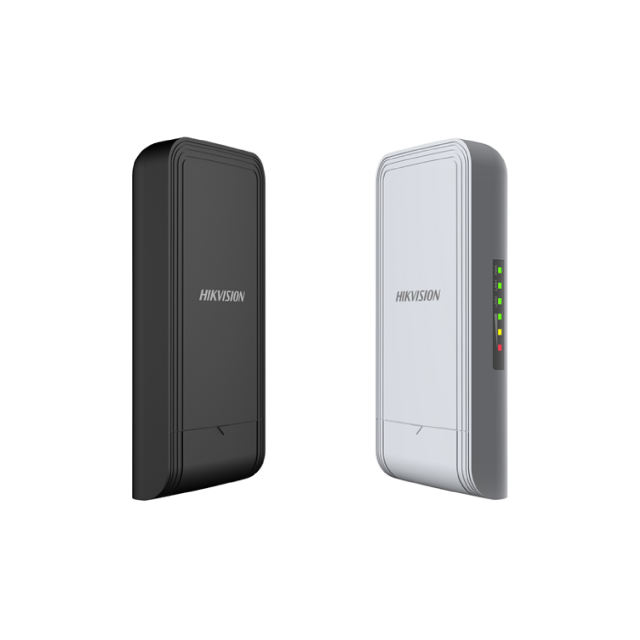

2.4 Ghz 300 Mbps 200 m Dual Elevator Wireless Bridge | DS-3WF0BC-2NT

Name: 2.4 Ghz 300 Mbps 200 m Dual Elevator Wireless Bridge | DS-3WF0BC-2NT
Brand: Viskou E-Shop |CCTV, Network, Door Access, Server Rack, Accessories
SKU: 317200216
Price: 213 MYR
Availability: InStock

DS-3WF0BC-2NT

- Visualized topology management
- 300 Mbps 802.11n wireless bridge
- Up to 200 m wireless transmission distance

RM213.00 ~~RM426.00~~

(Excluding Taxes)

Quantity

-

+

6 In Stock, Puchong

0 In Stock, Johor Bahru

0 In Stock, Penang

Add to Favorite Items

Description

DS-3WF0BC-2NT
2.4 Ghz 300 Mbps 200 m Dual Elevator Wireless Bridge

Real-Time alarm push technology
Visualized topology management
Built-in 7dBi 2 x 2 MIMO antenna
300 Mbps 802.11n wireless bridge
Up to 200 m wireless transmission distance

Specifications

Wireless Parameter	Max. Transmission Rate of Air Interface	≤ 300 Mbps
	Wireless Standard	IEEE 802.11n (2 × 2 MIMO 300 Mbps)
	Working Frequency Band	2400 MHz~2483.5 MHz
	Transmitting Power	19 ± 2 dBm @1 Mbps (Note: Transmitting power may vary with local regulations.)
	Receiving Sensitivity	-68 ± 2 dBm @HT40 MCS7
	Antenna Gain	7 dBi
	Antenna Angle	Beamwidth [3 dB] (35° ± 5°)
Network Parameters	Networking Mode	Point to point: Support up to 2-ch IPC (4K) in Max. 0.2 km distance and Max. 30 Mbps bandwidth
Hardware Parameter	Port Numbers	2 × 10/100 Mbps RJ45 ports
	LED Indicator	Power indicator, LAN indicator, signal intensity indicator
	Reset	Hardware resetting button
	Power Supply	12 VDC/1 A Passive PoE
General	Product Dimensions (W × H × D)	92 mm × 187 mm × 46 mm (3.62" × 7.36" × 1.81")
	Package Dimensions (W × H × D)	256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
	Net Weight	0.26 kg (0.57 lb) per device
	Gross Weight	0.8 kg (1.76 lb)
	Working Temperature	-30 °C to 70 °C (-22 °F to 158 °F)
