4 Port Fast Ethernet Smart POE Switch | DS-3E1106P-EI/M

DS-3E1106P-EI/M
- 6 kV Surge Protection
- Support 802.1Q VLAN
- Total PoE Power Budget 45 W
- Up to 300 m Long Range PoE Transmission
- 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
RM182.00 RM364.00
(Excluding Taxes)
Quantity
-
+
285 In Stock 178 In Stock, Puchong Warehouse
25 In Stock, Johor Bahru Warehouse
17 In Stock, Penang (Perai) Warehouse
24 In Stock, KK Warehouse
41 In Stock, Penang (Gelugor) Warehouse
, Puchong Warehouse
178 In Stock, Puchong
25 In Stock, Johor Bahru
17 In Stock, Penang (Perai)
41 In Stock, Penang (Gelugor)
24 In Stock, KK
  • Description
DS-3E1106P-EI/M

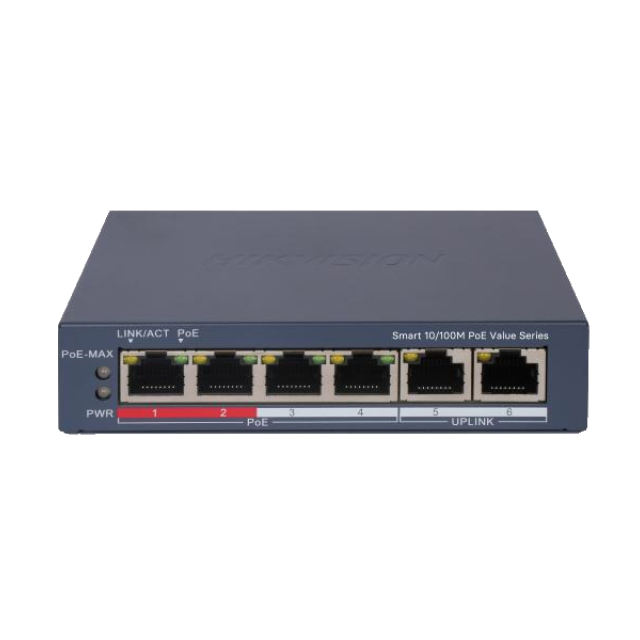

4 Port Fast Ethernet Smart POE Switch
  • 6 kV Surge Protection
  • Support 802.1Q VLAN
  • Total PoE Power Budget 45 W
  • Support STP/RSTP loop prevention
  • Support cable detection to locate failure
  • Up to 300 m Long Range PoE Transmission
  • 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
  • Support PoE watchdog to detect and restart the cameras that do not respond


Specifications

Network Parameters Ports 4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port
MAC Address Table 2 K
Switching Capacity 14 Gbps
Packet Forwarding Rate 10.42 Mpps
Internal Cache 1 Mbits
PoE Power Supply PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin End-span: 1/2(-), 3/6(+)
PoE Port PoE: Ports 1 to 4
Max. Port Power 30 W
PoE Power Budget 45 W
General Shell Metal material
Net Weight 0.27 kg (0.6 lb)
Gross Weight 0.77 kg (1.7 lb)

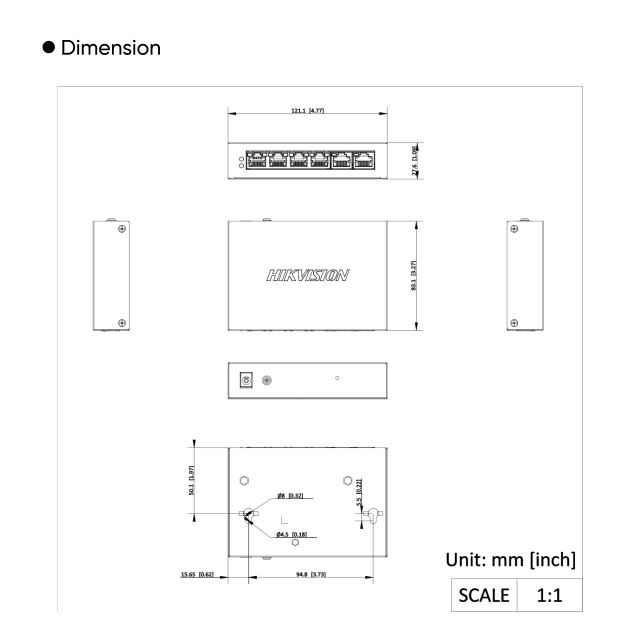

Dimensions
(W × H × D)
121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Power Supply 54 V DC, 0.92 A
Installation Mode Desk-Mounted, Wall-Mounted
Max. Power Consumption 50 W
Power Consumption in Idle 1.8 W
Surge Protection 6 kV


Datasheet

Download Datasheet
