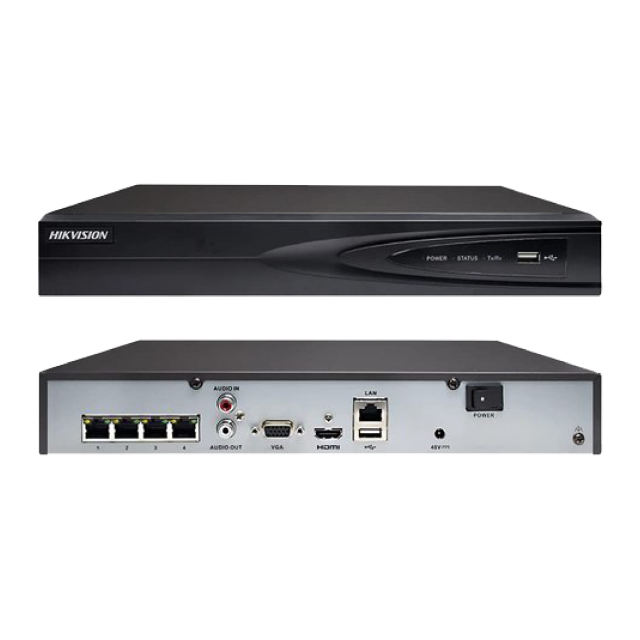

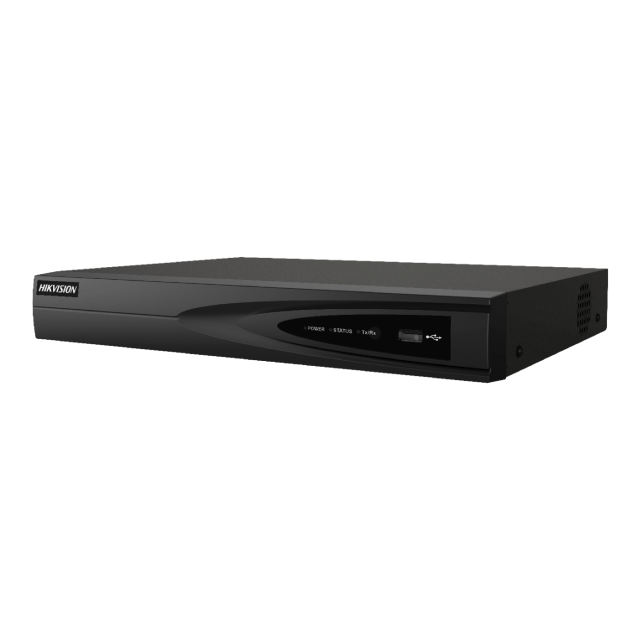

4 Channel NVR with POE | DS-7604NI-Q1/4P
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
- Up to 40 Mbps incoming bandwidth
IP video input |
4-ch
|
Incoming bandwidth |
40 Mbps |
Outgoing bandwidth |
80 Mbps |
HDMI output |
1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz,
|
VGA output |
1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
Video output mode |
HDMI/VGA simultaneous output |
CVBS output |
N/A |
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
Decoding format |
H.265+/H.265/H.264+/H.264 |
Recording resolution |
8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous playback |
4-ch |
Capability |
1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Remote connection |
16 |
Interface |
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
SATA |
1 SATA interface |
Capacity |
Up to 8 TB capacity for each disk |
USB interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Power supply |
48 VDC, 1.35 A |
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |

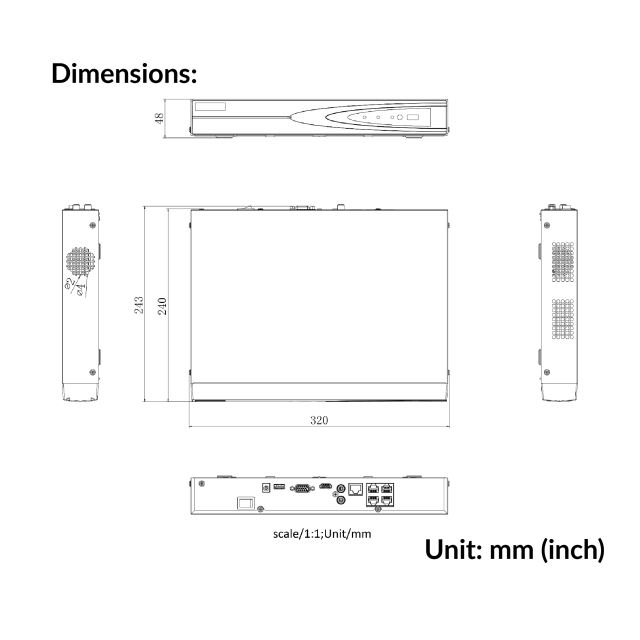

Dimension (W × D × H) |
320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
Weight (without HDD) |
≤ 1 kg (2.2 lb) |
