4 VIS-RACK Siren camera 2CD3321G0-IU(F) 2MP

4-ch 1080P 1U H.265 AcuSense DVR | iDS-7204HQHI-M1/E

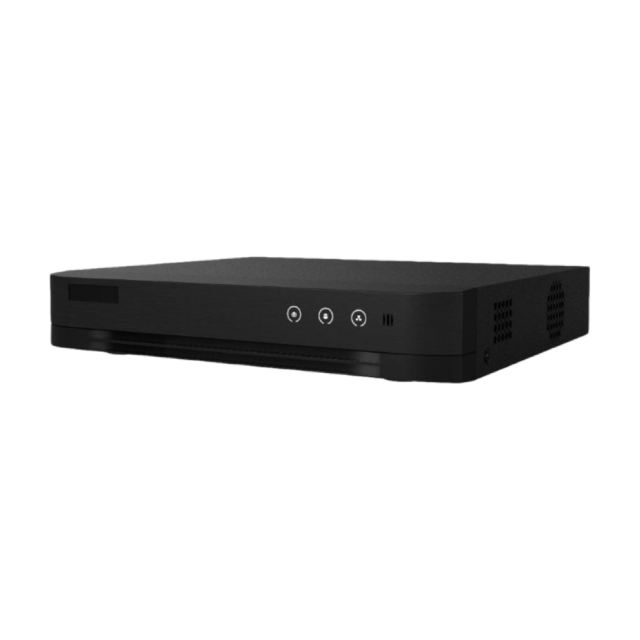

Name: 4-ch 1080P 1U H.265 AcuSense DVR | iDS-7204HQHI-M1/E
Brand: Viskou E-Shop |CCTV, Network, Door Access, Server Rack, Accessories
SKU: 300228909
Price: 262 MYR
Availability: InStock

iDS-7204HQHI-M1/E

- Up to 6-ch IP camera inputs (up to 6 MP)
- Encoding ability up to 3K/5M Lite @ 12 fps
- H.265 Pro+/H.265 Pro/H.265 video compression

RM262.00 ~~RM524.00~~

(Excluding Taxes)

Quantity

190 In Stock, Puchong

12 In Stock, Johor Bahru

10 In Stock, Penang

Add to Favorite Items

Description

iDS-7204HQHI-M1/E
4-ch 1080P 1U H.265 AcuSense DVR

Audio via coaxial cable
HDTVI/AHD/CVI/CVBS/IP video inputs
Up to 6-ch IP camera inputs (up to 6 MP)
Encoding ability up to 3K/5M Lite @ 12 fps
Deep learning-based perimeter protection
H.265 Pro+/H.265 Pro/H.265 video compression
Deep learning based human and vehicle targets classification of Motion Detection 2.0

Specifications

Motion Detection 2.0	Human/Vehicle Analysis	Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported;
Perimeter Protection	Human/Vehicle Analysis	Up to 2-ch
Facial Detection	Facial Detection and Capture	Face picture detection, face picture search
	Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
	Encoding Resolution	When 1080p Lite mode is not enabled: 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled: 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
	Video Bitrate	32 Kbps to 6 Mbps
	Dual-stream	Support
	Stream Type	Video, Video & Audio
	Audio Compression	G.711u
	Audio Bitrate	64 Kbps

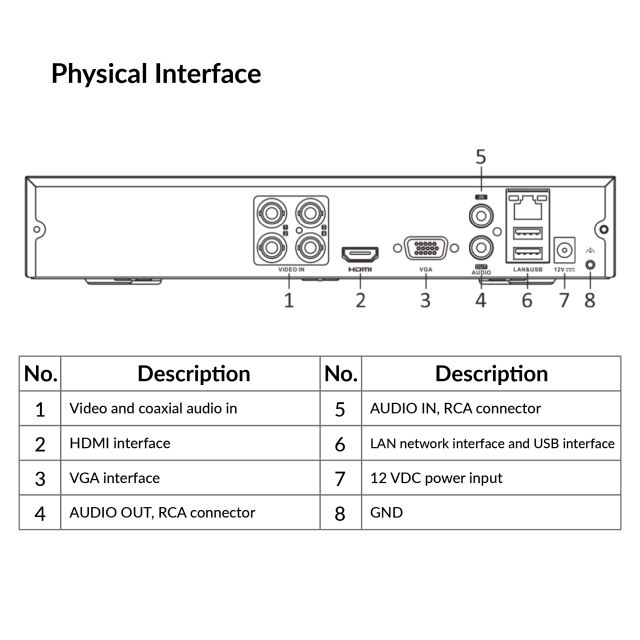

Video and Audio	IP Video Input	1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
	Analog Video Input	4-ch; BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
	Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
	Synchronous Playback	4-ch
Network	Total Bandwidth	72 Mbps
Network	Network Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Auxiliary Interface	SATA	1 SATA interface
Auxiliary Interface	Capacity	Up to 10 TB capacity for each disk
General	Power Supply	12 VDC, 1.5 A
	Consumption	≤ 8 W (without HDD)
	Working Temperature	-10 °C to +55 °C (+14 °F to +131 °F)

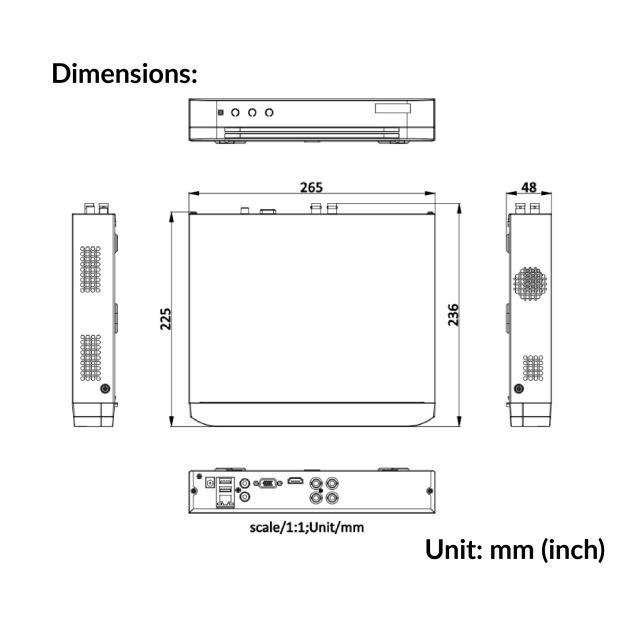

	Dimension (W × D × H)	265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
	Weight	≤ 1 kg (without HDD, 2.2 lb.)
